Precision Die Buttons Headed H

product

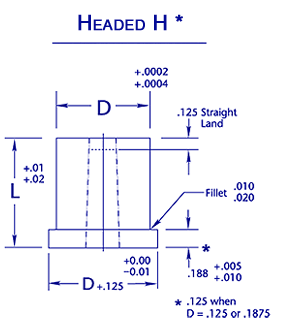

Precision Die Buttons Headed H

M-2: Rc 60/63 – PM-10V:Rc 61/63 – (A-2, D-2 & M-4 on request)

Headless D_ and Headed H_are made from EDM Die Blanks.

Point Tolerance Concentricity
P to D T.I.P
Round #1+.0002-.0 .0003
#2+.0005-.0 .0005
Shaped #1+.0002-.0 .0003
#2+.0005-.0005 .001
How to Check G
Standard Keying
Parallel to the major axis (Ref. 0°)Custom Location on Request
Standard Keying
Die Construction
Die Construction
Style P Style O Style D
Style P Style O Style D
Style R Style K Style F
Style PER Style PEK Style PEF
How
To order: EXAMPLE





Style




Body
Code





Length




P&W Tol Keying
Qty




DK 37 7/8 .225 x .109 R .010 1 4
HO




50




1




.250x.375 2 1F
6





When ordering specify style
For additional shapes
and prices, contact us.
