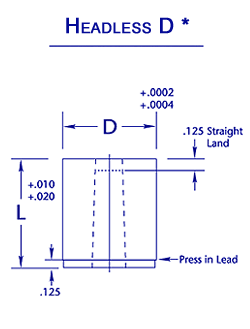

Precision Die Buttons Headless D

Headless D_ and Headed H_are made from EDM Die Blanks.




Point Tolerance Concentricity
P to D T.I.P
Round #1
+.0002
-.0
.0003
#2
+.0005
-.0
.0005
Shaped #1
+.0002
-.0
.0003
#2
+.0005
-.0005
.001
How to Check G
Standard Keying
Parallel to the major axis (Ref. 0°)
Custom Location on Request
Standard Keying
Die Construction
Die Construction
Style P Style O Style D
Style P Style O Style D
How
To order: EXAMPLE




Style




Body
Code




Length




P&W Tol Keying
Qty




DK 37 7/8 .225 x .109 R .010 1 4
HO




50








.250x.375 2 1F




•When ordering specify style
For additional shapes and prices, contact us.
