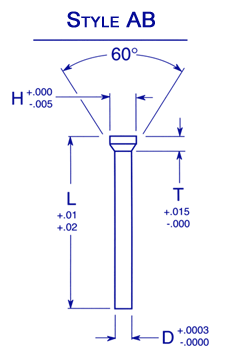

Ground Perforators Style AB

D 0.001 Increments H T L = Overall Length           L = Overall Length
      2 1/2"   3 1/2" 4" 6" 8"   2 1/2" 3 1/2" 4" 6" 8"
.010-.014 1/32 1/16 (2" 3.99) 4.80 6.39 8.60 - - (2" 4.21) 5.06 6.74 9.08 - -
.015-.019 1/32 1/16 (2" 3.29) 3.99 5.50 7.97 - - (2" 3.48) 4.21 5.81 8.42 - -
.020 -.029 3/64 1/16 (2" 2.66) 3.22 4.80 7.27 - - (2" 2.81) 3.40 5.06 7.68 - -
.030 -.036 1/16 1/16 2.21 0.00 4.42 6.56 - -   2.34 4.66 6.93 - -
.037-.046 5/64 1/16 0.00 0.00 4.42 6.07 11.11 18.26   2.34 4.66 6.41 11.73 19.28
.047-.055 3/32 5/64 0.00 0.00 3.67 5.70 10.88 17.07   2.34 3.87 6.02 11.49 18.02
.056-.064 7/64 5/64 2.95 0.00 3.77 5.80 10.60 18.49   3.12 3.98 6.12 11.19 19.52
.065-.078 1/8 5/64 0.00 0.00 0.00 0.00 0.00 17.76   3.12 3.98 6.12 11.19 18.75
.079-.087 9/64 3/32 0.00 0.00 0.00 0.00 0.00 17.06   3.12 3.98 6.12 11.19 18.01
.088-.099 5/32 3/32 3.28 0.00 4.10 5.39 10.08 15.47   3.46 4.33 5.69 10.64 16.33
.100-.120 11/64 3/32 0.00 0.00 0.00 0.00 0.00 0.00   3.46 4.33 5.69 10.64 16.33
.121-.131 3/16 3/32 0.00 0.00 0.00 0.00 0.00 0.00   3.46 4.33 5.69 10.64 16.33
.132-.147 13/64 3/32 3.50 0.00 4.32 5.59 9.45 14.41   3.70 4.56 5.90 9.97 15.21
.148-.163 7/32 3/32 0.00 0.00 0.00 0.00 0.00 0.00   3.70 4.56 5.90 9.97 15.21
.164-.179 15/64 3/32 0.00 0.00 0.00 0.00 0.00 0.00   3.70 4.56 5.90 9.97 15.21
.180-.194 1/4 3/32 3.99 0.00 4.90 6.11 10.90 16.35   4.21 5.18 6.45 11.51 17.26
.195-.210 17/64 3/32 0.00 0.00 0.00 0.00 0.00 0.00   4.21 5.18 6.45 11.51 17.26
.211-.225 9/32 3/32 0.00 0.00 0.00 0.00 0.00 0.00   4.21 5.18 6.45 11.51 17.26
.226-.241 19/64 3/32 4.72 0.00 5.57 6.77 11.71 17.42   4.98 5.88 7.14 12.36 18.39
.242-.257 5/16 3/32 0.00 0.00 0.00 0.00 0.00 0.00   4.98 5.88 7.14 12.36 18.39
.258-.272 21/64 3/16 4.72 0.00 0.00 0.00 0.00 0.00   4.98 5.88 7.14 12.36 18.39
.273-.288 11/32 3/16 0.00 0.00 0.00 0.00 0.00 0.00   4.98 5.88 7.14 12.36 18.39
.289-.304 23/64 3/16 5.47 0.00 6.89 7.63 13.88 19.56   5.77 7.28 8.06 14.66 20.65
.305-.320 3/8 3/16 0.00 0.00 0.00 0.00 0.00 0.00   5.77 7.28 8.06 14.66 20.65
.321-.336 25/64 3/16 0.00 0.00 0.00 0.00 0.00 0.00   5.77 7.28 8.06 14.66 20.65
.337-.352 13/32 3/16 6.71 0.00 7.80 9.05 15.63 22.62   7.08 8.23 9.55 16.50 23.88
.353-.368 27/64 3/16 0.00 0.00 0.00 0.00 0.00 0.00   7.08 8.23 9.55 16.50 23.88
.369-.375 7/16 3/16 0.00 0.00 0.00 0.00 0.00 0.00   7.08 8.23 9.55 16.50 23.88
.376-.436 D +.06 +.09 3/16 8.13 0.00 9.63 11.07 17.66 24.76   8.58 10.17 11.68 18.64 26.14
.437-.484 3/16 9.23 0.00 11.41 12.95 19.69 26.88   9.75 12.04 13.67 20.79 28.38
.485-.562 3/16 10.36 0.00 13.31 14.46 20.67 27.94   10.94 14.05 15.26 21.82 29.50
.563-.625 3/16 11.77 0.00 15.61 16.96 23.22 30.49   12.42 16.48 17.91 24.52 32.18
.626-1.000 3/16 ON REQUEST             ON REQUEST
Min. Cut-off Charge $10.00
Diameter .010 – .029 .030 – .125 .126 – .375 .376 – .499 .500 – .625
Price Each on request 0.35 0.45 0.65 on request
Quantity Discounts
1 – 24 25 – 49 50 – 99 100 +
NET 5% 10% Call
How To Order: EXAMPLE
Style Dia. Length Mat. Quantity
AB 0.126 2.50″ M-2 50
* Unshaded sizes in stock *Set-up Charges – 2 1/2 – 4″ = $30.00
* Larger diameter or optional material on request (shaded area only) 6 – 8″ = $40.00
* Shaded Sizes – any .0001 increment – no extra charge 10 – 12″ = $60.00
