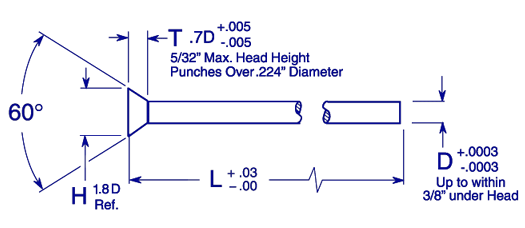

BEVEL HEAD PERFORATORS Style AF-O1 4″ & 6″ Long

D
Diameter
Fractional
L
Length
Net Price Each D
Dia. Decimal
.001 Increments
Net Price Each
100 50-99 25-49 10-24 100 50-99 25-49 10-24
1/16" 5/64" 3/32" 7/64" 4" 2.12 2.52 3.03 3.54 .047-.109 4.59 5.60 8.13 14.63
6" 2.71 3.09 3.66 4.26 ON REQUEST
1/8" 4" 1.88 2.19 2.59 2.99 .110-.124 3.87 4.65 6.70 11.75
6" 2.20 2.48 2.90 3.34 4.13 5.34 7.74 12.55
9/64" 5/32" 4" 1.92 2.20 2.61 3.00 .126-.156 4.01 4.82 6.79 11.86
6" 2.24 2.53 2.95 3.39 4.26 5.47 7.86 12.68
11/64" 3/16" 4" 2,02 2,25 2.68 3.12 .157-.187 4.13 4.93 6.49 12.27
6" 2.28 2.59 2.99 3.41 4.40 6.15 10.15 14.94
13/64" 7/32" 4" 2.73 3.00 3.45 3.87 .188-.218 4.65 5.48 7.46 12.77
6" 3.39 3.66 4.09 4.47 5.20 6.94 10.95 15.73
15/64" 1/4" 4" 2.93 3.20 3.63 4.04 .219-.249 4.93 5.74 7.74 13.06
6" 3.54 3.85 4.28 4.68 5.34 7.11 11.04 15.86
17/64" 9/32" 4" 4.60 4.90 5.29 5.74 .251-.281 6.99 7.90 10.15 16.19
6" 5.21 5.47 5.90 6.33 8.01 9.74 13.73 18.52
19/64" 5/16" 4" 4.72 5.02 5.42 5.84 .282-.312 7.13 8.03 10.31 16.37
6" 5.37 5.61 6.04 6.48 8.30 10.01 13.99 18.80
21/64" 11/32" 4" 5.20 5.43 5.89 6.31 .313-.343 7.59 8.49 10.75 16.83
6" 5.79 6.08 6.49 6.91 8.65 10.41 14.39 19.20
23/64" 3/8" 4" 5.56 5.82 6.26 6.66 .344-.374 7.90 8.80 11.04 17.02
6" 6.15 6.46 6.86 7.30 8.93 10.66 14.67 19.46
Min. Cut-off Charge $10.00
Diameter .010 – .029 .030 – .125 .126 – .375
Price Each ON REQUEST 0.35 0.45
How To order: EXAMPLE
Style Dia. Length Quantity
AF-01 5/32″ 6″ 200

• 10 piece minimum
