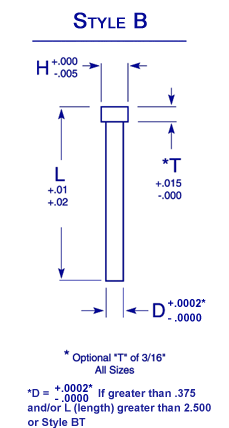

Ground Perforators Style B

D 0.001 Increments H T L = Overall Length               L = Overall Length


  2 1/2" 3 1/2" 4" 6" 8" 10" 12"   2 1/2" 3 1/2" 4" 6" 8" 10" 12"

.010-.014 1/32 1/16 (2" 3.99) 4.80 6.39 8.60 - - - - (2" 4.21) 5.06 6.74 9.08 - - - -
.015-.019 1/32 1/16 (2" 3.29) 3.99 5.50 7.97 - - - - (2" 3.48) 4.21 5.81 8.42 - - - -
.020-.029 3/64 1/16 (2" 2.66) 3.22 4.80 7.27 - - - - (2" 2.81) 3.40 5.06 7.68 - - - -
.030-.036 1/16 1/16   2.21 4.42 6.56 - - - -   2.34 4.66 6.93 - - - -
.037-.046 5/64 1/16   0.00 4.42 6.07 11.11 18.26 - -   4.66 6.41 11.73 19.28 - -
.047-.055 3/32 3/32   0.00 3.67 5.70 10.88 17.07 - -   3.87 6.02 11.49 18.02 - -
.056-.064 7/64 3/32   2.95 3.77 5.80 10.60 18.49 - -   3.12 3.98 6.12 11.19 19.52 - -
.065-.078 1/8 3/32   0.00 0.00 0.00 0.00 17.76 - -   6.12 11.19 18.75 - -
.079-.087 9/64 3/32   0.00 0.00 0.00 0.00 17.06 - -   6.12 11.19 18.01 - -
.088-.099 5/32 3/32   3.28 4.10 5.39 10.08 15.47 0.00 0.00   3.46 4.33 5.69 10.64 16.33 - -
.100-.120 11/64 3/32   0.00 0.00 0.00 0.00 0.00 0.00 0.00   5.69 10.64 16.33 - -
.121-.131 3/16 1/8   0.00 0.00 0.00 0.00 0.00 21.55 27.84   5.69 10.64 16.33 22.75 29.40
.132-.147 13/64 1/8   3.50 4.32 5.59 9.45 14.41 20.14 25.90   3.70 4.56 5.90 9.97 15.21 21.26 27.35
.148-.163 7/32 1/8   0.00 0.00 0.00 0.00 0.00 0.00 0.00   5.90 9.97 15.21 21.26 27.35
.164-.179 15/64 1/8   0.00 0.00 0.00 0.00 0.00 0.00 0.00   5.90 9.97 15.21 21.26 27.35
.180-.194 1/4 1/8   3.99 4.90 6.11 10.90 16.35 22.88 29.43   4.21 5.18 6.45 11.51 17.26 24.16 31.07
.195-.210 17/64 1/8   0.00 0.00 0.00 0.00 0.00 0.00 0.00   6.45 11.51 17.26 24.16 31.07
.211-.225 9/32 1/8   0.00 0.00 0.00 0.00 0.00 0.00 0.00   6.45 11.51 17.26 24.16 31.07
.226-.241 19/64 1/8   4.72 5.57 6.77 11.71 17.42 24.39 31.40   4.98 5.88 7.14 12.36 18.39 25.75 33.15
.242-.257 5/16 3/16   0.00 0.00 0.00 0.00 0.00 0.00 0.00   7.14 12.36 18.39 25.75 33.15
.258-.272 21/64 3/16   0.00 0.00 0.00 0.00 0.00 0.00 0.00   7.14 12.36 18.39 25.75 33.15
.273-.288 11/32 3/16   0.00 0.00 0.00 0.00 0.00 0.00 0.00   7.14 12.36 18.39 25.75 33.15
.289-.304 23/64 3/16   5.47 6.89 7.63 13.88 19.56 27.40 35.15   5.77 7.28 8.06 14.66 20.65 28.93 37.10
.305-.320 3/8 3/16   0.00 0.00 0.00 0.00 0.00 0.00 0.00   8.06 14.66 20.65 28.93 37.10
.321-.336 25/64 3/16   0.00 0.00 0.00 0.00 0.00 0.00 0.00   8.06 14.66 20.65 28.93 37.10
.337-.352 13/32 3/16   6.71 7.80 9.05 15.63 22.62 31.68 40.74   6.88 8.23 9.55 16.50 23.88 33.45 43.01
.353-.368 27/64 3/16   0.00 0.00 0.00 0.00 0.00 0.00 0.00   9.55 16.50 23.88 33.45 43.01
.369-.375 7/16 3/16   0.00 0.00 0.00 0.00 0.00 0.00 0.00   9.55 16.50 23.88 33.45 43.01
.376-.436 D +.06 +.09 3/16   8.13 9.63 11.07 17.66 24.76 34.69 44.55   8.58 10.17 11.68 18.64 26.14 36.62 47.04
.437-.484 3/16   9.23 11.41 12.95 19.69 26.88 37.62 48.37   9.75 12.04 13.67 20.79 28.38 39.72 51.07
.485-.562 3/16   10.36 13.31 14.46 20.67 27.94 39.12 50.32   10.94 14.05 15.26 21.82 29.50 41.30 53.13
.563-.625 3/16   11.77 15.61 16.96 23.22 30.49 42.78 54.89   12.42 16.01 17.91 24.52 32.18 45.16 57.95
.626-1.000 3/16 ON REQUEST               ON REQUEST
Min. Cut-off Charge $10.00
Diameter .010 – .029 .030 – .125 .126 – .375 .376 – .499 .500 – .625
Price Each on request 0.35 0.45 0.65 on request
Quantity Discounts
1 – 24 25 – 49 50 – 99 100 +
NET 5% 10% Call
How To Order: EXAMPLE
Style Dia. Length Mat. Quantity
B 0.126 2.50″ M-2 50
* Unshaded sizes in stock *Set-up Charges – 2 1/2 – 4″ = $30.00
* Larger diameter or optional material on request (shaded area only) 6 – 8″ = $40.00
* Shaded Sizes – any .0001 increment – no extra charge 10 – 12″ = $60.00
