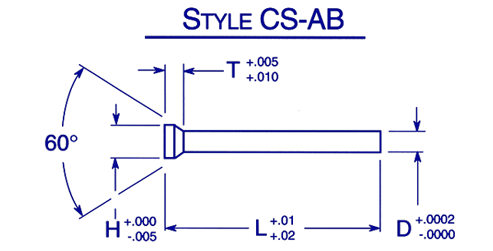

Close Space Punches style CS-AB

Style CS-AB D Dia. H T Length 2 1/2″ Price 3 1/2″ Price
A-2 M-2 PM-10V A-2 M-2 PM-10V
CS-AB – 06 0.0625 7/64 5/64 Standard 2 1/2 – 3 1/2 Cut to length (See cut-off charge below) 3.56 5.39 4.52 ON REQUEST
CS-AB – 09 0.0938 5/32 3/32 3.92 5.96 4.92
CS-AB – 12 0.125 3/16 3/32 3.92 5.96 4.92
CS-AB – 15 0.1562 7/32 3/32 4.19 6.38 5.19
CS-AB – 18 0.1875 1/4 3/32 4.79 7.27 5.88
CS-AB – 21 0.2188 9/32 3/32 4.79 7.27 5.88
CS-AB – 25 0.25 5/16 3/32 5.67 8.61 6.68
CS-AB – 31 0.3125 3/8 3/16 6.28 9.54 7.42
CS-AB – 37 0.375 7/16 3/16 6.82 10.34 7.92



Min. Cut-off Charge $10.00
Diameter .0625 – .125 .1562 – .375
Price Each 0.35 0.45
Quantity Discounts
1 – 24 25 – 49 50 – 99 100 +
NET 5% 10% Call
How To order: EXAMPLE
Style Length Mat. Quantity
CS-AB – 12 2.50″ M-2 50
