product

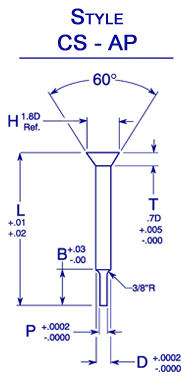

Style CS-AP D Dia. L Length Minimum P Point Diameter any .0001 inc. B Std. Point Length 2 1/2″ Price 2 1/2″ Price 3 1/2" Price
          A-2 M-2 PM-10V A-2 M-2 PM-10V A-2 M-2 PM-10V*
CS-AP-06 0.0625 Standard
2 1/2″
Cut to
Length
See
Cut Off
Charge
0.031 3/16 9.85 12.81 10.40 13.52 11.64 15.46
CS-AP-09 0.0938 0.062 1/4 10.38 13.57 10.96 14.33 12.25 16.30
CS-AP-12 0.125 0.093 5/16 10.44 13.60 11.02 14.36 12.33 16.33
CS-AP-15 0.1562 0.125 3/8 10.86 14.16 11.47 14.94 12.75 16.92
CS-AP-18 0.1875 0.156 7/16 11.65 15.21 12.30 16.06 13.72 18.39
CS-AP-21 0.2188 0.182 1/2 11.73 15.58 12.38 16.45 13.82 18.64
CS-AP-25 0.25 0.218 9/16 12.90 17.40 13.62 18.37 14.93 20.40
CS-AP-31 0.3125 0.281 5/8 13.73 18.82 14.49 19.86 15.97 22.09
CS-AP-37 0.375 0.343 5/8 14.45 20.12 15.25 21.24 16.69 23.42
Min. Cut-off Charge $10.00
Diameter .0625 – .125 .1562 – .375
Price Each 0.35 0.45
Available on Request
Quantity Discounts
1 – 5 6 – 24 25 – 49 50 – 99 100 +
Net + $10. Set-up NET 5% 10% Call
How To order: EXAMPLE
Style Length Mat. Pt. Dia. Quantity
CS-AP-06 2 1/2″ A-2 0.031 15
