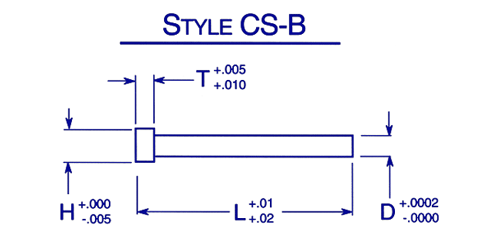

Close Space Punches Style CS-B

Style
CS-B
D
Dia.
H T Length 2 1/2″ Price 3 1/2″ Price
A-2 M-2 PM-10V A-2 M-2 PM-10V
CS-B – 06 0.0625 1/8 1/8 Standard
2 1/2 –
3 1/2
Cut to
length
(See
cut-off
charge
below)
3.56 5.39 4.52 6.88
CS-B – 09 0.0938 5/32 1/8 3.92 5.96 4.92 7.48
CS-B – 12 0.125 3/16 1/8 3.92 5.96 4.92 7.48
CS-B – 15 0.1562 7/32 1/8 4.19 6.38 5.19 7.86
CS-B – 18 0.1875 1/4 1/8 4.79 7.27 5.88 8.94
CS-B – 21 0.2188 9/32 1/8 4.79 7.27 5.88 8.94
CS-B – 25 0.25 5/16 1/8 5.67 8.61 6.68 10.17
CS-B – 31 0.3125 3/8 3/16 6.28 9.54 7.42 11.26
CS-B – 37 0.375 7/16 3/16 6.82 10.34 7.92 12.03
Min. Cut-off Charge $10.00
Diameter .0625 – .125 .1562 – .375
Price Each 0.35 0.45
Quantity Discounts
1 – 24 25 – 49 50 – 99 100 +
NET 5% 10% Call
How To order: EXAMPLE
Style Length Mat. Quantity
CS-B – 12 2.50″ M-2 50
