Long Shoulder Nitride Ejector Pins Style EPS-2 – Nitrided Knockout Pins

StyleNo. DPin Dia. Length
6″ 10″ 14″
EPS-2-046 3/64 5.27 6.07 8.50
EPS-2-051 .005 3/64 O.S. 7.28
EPS-2-062 1/16 5.08 6.12 7.49
EPS-2-067 .005 1/16 O.S. 6.85
EPS-2-078 5/64 5.08 6.12 7.95
EPS-2-083 .005 5/64 O.S. 6.85
EPS-2-093 3/32 4.40 5.51 7.62
EPS-2-098 .005 3/32 O.S. 6.25
EPS-2-109 7/64 4.40 5.51 7.46
EPS-2-114 .005 7/64 O.S. 6.44
How To order: EXAMPLE
Style Dia. x Length Quantity
EPS-2-046 3/64 x10″ 50

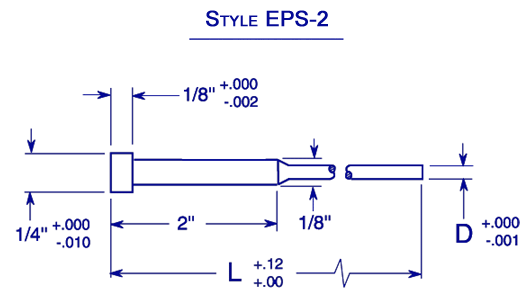

LONG SHOULDER TYPE NITRIDED EJECTOR PIN STYLE EPS-2

• Specifications: H-13 hot work die steel; heads forged and annealed; body nitrided; honed finish
