product
Style No. D Pin Dia. Length
6″ 10″ 14″
EPS-5-046 3/64 5.41 6.85 8.78
EPS-5-051 .005 3/64 O.S. 7.55
EPS-5-062 1/16 5.14 6.41 8.25
EPS-5-067 .005 1/16 O.S. 7.14
EPS-5-078 5/64 45.14 6.41 8.36
EPS-5-083 .005 5/64 O.S. 7.14
EPS-5-093 3/32 4.60 5.83 7.93
EPS-5-098 .005 3/32 O.S. 6.55
EPS-5-109 7/64 4.60 5.83 7.93
EPS-5-114 .005 7/64 O.S. 6.55
How To order: EXAMPLE
Style Dia. x Length Quantity
EPS-5-046 3/64 x106″ 50

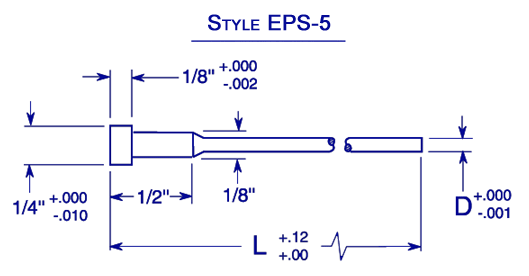

SHOULDER TYPE NITRIDED EJECTOR PIN STYLE EPS-5 • Specifications: H-13 hot work die steel; heads forged and annealed; body nitrided; honed finish
