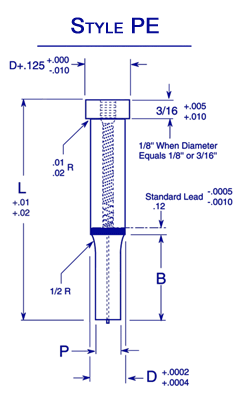

Ejector Punches Style PE

product
Point Tolerance Concentricity
P to D T.I.P
Round #1+.0002-.0 .0003
#2+.0005-.0 .0005
Shaped #1+.0002-.0 .0003
#2+.0005-.0005 .001
How to Check G

,

Standard Keying
Parallel to the major axis (Ref. 0°)Custom Location on Request
Standard Keying

,Style PEPStyle PEOStyle PEDStyle PEPStyle PEOStyle PED,

Style PER Style PEK Style PEF
Style PER Style PEK Style PEF

,

How To order: EXAMPLES
Style
Length
Mat.
Pt. DimPxW . Pt. Length Tol. Keying
Qty
PEP 31
2″
M-2
.138 1″ #2
24
PEO 25
2 1/4″
10-V
.1614 x .0986 1 1/4″ #1 1F
PEK 37
2 1/4″
10-V
.1614 x .1267 R .010 1 1/4″ #1 1F

,

• When ordering specify style PEP, PEO, PEF,PER, PEK or PED
• For additional shapes and pricing call 860-229-9902 or 860-229-9902
