EJECTOR PUNCH BLANKS

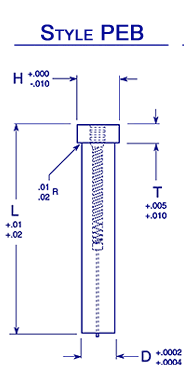

Style PEB D Dia. H T L Length 1/4" Increments Component (PEC) M-2 D-2 PM-M4 PM-10V M-2 D-2 PM-M4 PM-10V
12* 1/8 1/4 1/8 1 1/4 - 2 1/2 10 29.59 ON REQUEST 31.24 ON REQUEST
18 1/5 1/3 1/8 1 1/4 - 3 20 22.74 23.71 26.63 33.78 24.01 25.03 28.12 35.66
25 1/4 3/8 3/16 1 1/4 - 3 29 24.47 25.55 28.68 35.47 25.83 26.98 30.28 37.44
31 5/16 7/16 3/16 1 1/4 - 4 42 24.91 26.14 29.88 37.66 26.30 27.59 31.55 39.76
37 3/8 1/2 3/16 1 1/4 - 4 60 25.16 26.31 30.99 39.43 26.56 27.78 32.72 41.63
43 7/16 9/16 3/16 1 1/2 - 4 60 26.81 28.01 33.72 42.91 28.30 29.57 35.60 45.30
50 1/2 5/8 3/16 1 1/2 - 4 60 28.39 29.61 35.76 46.64 29.97 31.26 37.75 49.24
62 5/8 3/4 3/16 1 1/2 - 4 90 31.61 32.93 41.25 53.45 33.37 34.77 43.55 56.43
75 3/4 7/8 3/16 1 1/2 - 4 90 39.22 40.77 52.24 66.46 41.41 43.04 55.16 70.16
100 1" 1 1/8" 3/16 1 1/2 - 4 90 56.35 58.41 77.07 99.66 59.49 61.66 81.36 105.22

* PEB-12 stocked in M-2 only

Component Specifications

Component Set Screw Spring Pin Price per Set
D L D L D L H T
PEC – 05 3-48 0.19 0.080 2.40 0.017 1.10 0.048 0.031 3.70
PEC – 10 2-56 0.12 0.065 2.40 0.022 2.0 0.062 0.031 3.38
PEC – 20 3-48 0.19 0.080 2.40 0.027 2.0 0.062 0.047 3.38
PEC – 29 5-40 0.19 0.104 2.40 0.027 2.0 0.073 0.047 3.38
PEC – 42 8-32 0.19 0.135 3.20 0.041 2.0 0.094 0.062 3.38
PEC – 60 10-32 0.19 0.167 3.00 0.058 2.0 0.120 0.062 3.38
PEC – 90 1/4-28 0.25 0.216 3.05 0.089 2.25 0.156 0.094 3.38
PEC – 120 5/16-24 0.25 0.270 2.56 0.120 2.2 0.188 0.094 4.64
Quantity Discounts
1-24 25 – 49 50 – 99 100 +
NET 5% 10% Call
How To order: EXAMPLE
Style Length Mat. Quantity
PEB 31 3.25″ PM-M4 50
  • Ejector Punch Blanks are Delivered From Stock
