product

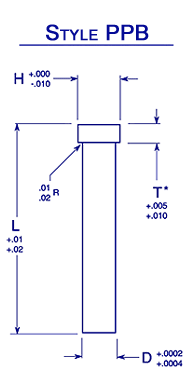

Style PPB D H T* L Length 1/4″ Increments Price         Price
          A-2 M-2 D-2 PM-M4 PM-10V A-2 M-2 D-2 PM-M4 PM-10V
PPB – 12 1/8 1/4 1/8 (3/16) 1 1/4 – 3 7.80 8.57 9.86 12.34 14.37 8.23 9.05 10.41 13.03 15.17
PPB – 18 3/16 5/16 1/8 (3/16) 1 1/4 – 3 1/2 7.89 9.22 10.39 13.60 15.80 8.33 9.74 10.97 14.36 16.68
PPB – 25 1/4 3/8 3/16 (1/8) 1 1/4 – 3 1/2 8.11 9.60 10.70 14.26 17.35 8.56 10.14 11.30 15.06 18.32
PPB – 31 5/16 7/16 3/16 (1/8) 1 1/4 – 4 9.42 11.18 11.51 15.10 18.52 9.94 11.81 12.16 15.94 19.56
PPB – 37 3/8 1/2 3/16 (1/8) 1 1/4 – 4 12.27 14.11 14.34 17.45 20.12 12.96 14.89 15.14 18.42 21.24
PPB – 43 7/16 9/16 3/16 1 1/2 – 4 14.02 15.70 16.17 21.03 24.57 14.80 16.57 17.08 22.20 25.94
PPB – 50 1/2 5/8 3/16 1 1/2 – 4 15.04 17.80 18.35 22.19 27.47 15.88 18.79 19.37 23.43 29.00
PPB – 62 5/8 3/4 3/16 (1/4) 1 1/2 – 4 17.10 19.49 20.62 29.50 36.20 18.05 20.57 21.77 31.15 38.22
PPB – 75 3/4 7/8 3/16 (1/4) 1 1/2 – 4 20.83 24.64 25.90 38.23 47.53 21.99 26.01 27.35 40.36 50.18
PPB – 100 1" 1 1/8" 3/16 (1/4) 1 1/2 – 4 30.18 39.53 41.45 57.56 75.06 31.87 41.74 43.76 60.77 79.24

Extra Length 6″ and 8″

Style PPB Body Dia. D Dia. H Head Thickness T Price       Price
        6"   8"   6"   8"
        A-2 M-2 A-2 M-2 A-2 M-2 A-2 M-2
PPB-12 1/8 1/4 1/8 13.98 16.89 18.31 20.95 14.76 17.83 19.33 22.12
PPB-18 3/16 5/16 1/8 15.07 17.60 18.50 22.02 15.91 18.58 19.54 23.25
PPB-25 1/4 3/8 3/16 16.05 18.52 19.30 23.08 16.94 19.56 20.38 24.36
PPB-31 5/16 7/16 3/16 19.47 22.45 23.66 28.49 20.55 23.70 24.98 30.07
PPB-37 3/8 1/2 3/16 20.92 26.89 27.77 32.94 22.09 28.39 29.31 34.78
PPB-43 7/16 9/16 3/16 23.19 28.83 30.48 36.78 24.49 30.43 32.17 38.83
PPB-50 1/2 5/8 3/16 24.25 29.79 31.15 39.90 25.60 31.45 32.88 42.13
PPB-62 5/8 3/4 3/16 25.70 34.89 39.87 50.39 27.13 36.84 42.10 53.20
PPB-75 3/4 7/8 3/16 33.72 43.24 47.32 57.92 35.60 45.65 49.96 61.15
PPB-100 1" 1 1/8" 3/16 52.79 69.16 72.04 91.99 55.73 73.01 76.05 97.12

Length 10″ and 12″ ON REQUEST

Quantity Discounts
1 – 24 25 – 49 50 – 99 100 +
NET 5% 10% Call
How To order: EXAMPLE
Style Length Mat. Quantity
PPB 25 3″ M-2 50
PPBT 12 3″ M-2 50

• (*) Optional T (PPBT) A-2, M-2 only • Delivery from stock
