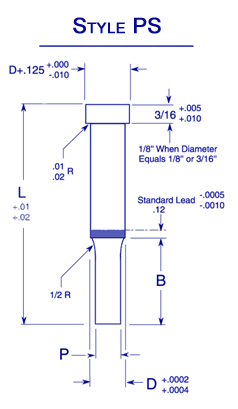

Stepped Punch Style PS

NOTE: Style PS_ is made from the Punch Blank Style PPB

Point

Tolerance

Concentricity

P to D

T.I.P

Round #1+.0002-.0 .0003
#2+.0005-.0 .0005
Shaped #1+.0002-.0 .0003
#2+.0005-.0005 .001
How to Check G
Standard Keying
Parallel to the major axis (Ref. 0°)Custom Location on Request
Standard Keying
Style PSP Style PSO Style PSD
Style PSP Style PSO Style PSD
Style PSR Style PSK Style PSF
Style PSR Style PSK Style PSF
How To order: EXAMPLES
Style
Length
Mat.
Pt. Dim PxW. Pt. Length Tol. Keying
Quantity
PSP 31
2″
M-2
.138 1″ #2
24
PSO 25
2 1/4″
10-V
.1614 x .0986 1 1/4″ #1 1F
6
PSK 37
2 1/4″
10-V
.1614 x .1267 R .010 1 1/4″ #1 1F
6
• When ordering specify style PSP, PSO, PSD, PSR, PSK or PSF
For additional shapes and prices, contact us.
